Riptide Series
Efficient in stirring up with agitator and pumping sand and gravel.
- Maximum capacity:Up to 330 m3/hr
- Maximum pressure:Up to 25 m TDH
- Designed for solid concentration:Up to 20%
- Victaulic discharge connections:From 3” up to 8”
- Rating:3 HP up to 15 HP
Applications
Drainage out of pit, mining and dredging work.
Agitator pumps and vortex agitator pumps Specifications

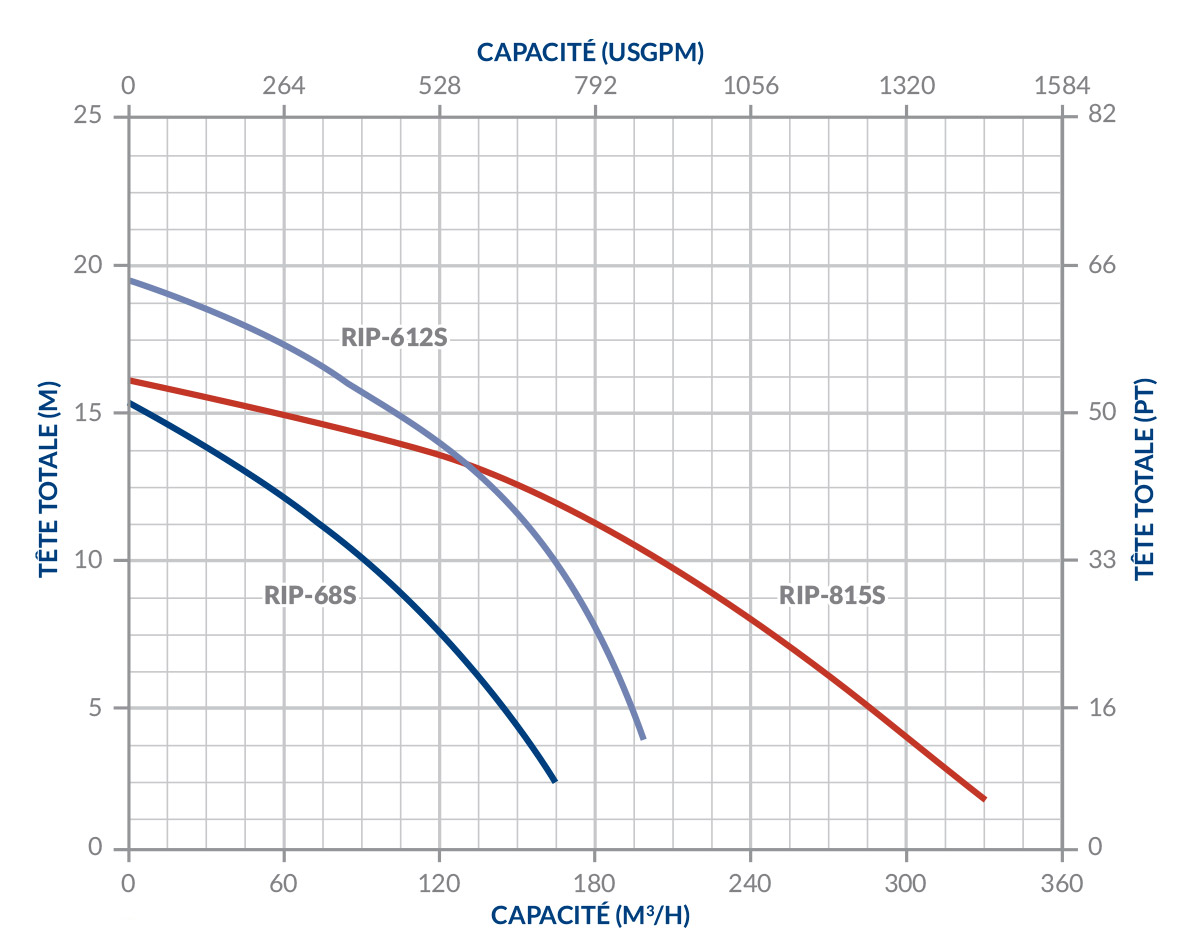

| Pump models | Pump performance | Pump dimensions | ||||||
| Motor Output | Total head | Capacity | Max solid through | Pump diameter | Height | Weight | Victaulic discharge diameter | |
| [hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |
| RIP-68S | 8 (5.5) | 33 (10) | 396 (90) | 0.8 (20) | 18 (455) | 30 (750) | 273 (124) | 6 (150) |
| RIP-612S | 12 (9) | 46 (14) | 528 (120) | 0.8 (20) | 22 (560) | 32 (825) | 396 (180) | 6 (150) |
| RIP-815S | 15 (11) | 26 (8) | 1056 (240) | 0.8 (20) | 22 (560) | 33 (835) | 440 (200) | 8 (200) |

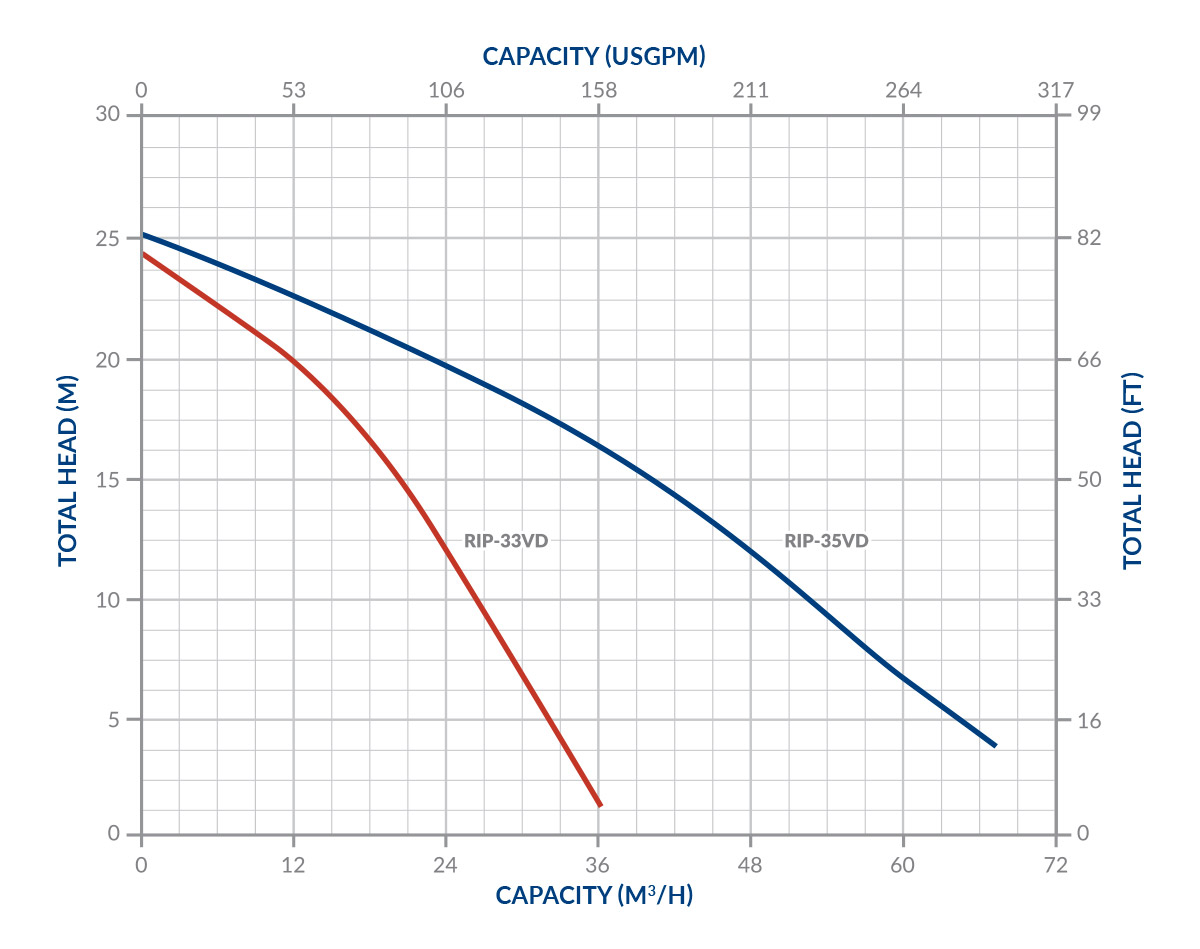

| Pump models | Pump performance | Pump dimensions | ||||||
| Motor Output | Total head | Capacity | Max solid through | Pump diameter | Height | Weight | Victaulic discharge diameter | |
| [hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |
| RIP-33VD | 3 (2.2) | 33 (10) | 106 (24) | 0.5 (13) | 12 (304) | 22 (560) | 64 (29) | 3 (80) |
| RIP-35VD | 5 (3.7) | 49 (15) | 132 (30) | 0.5 (13) | 13 (328) | 30 (750) | 99 (45) | 3 (80) |
