Maverick Series
These pumps can be used conveniently, because the motor cools down during operation. Fitted with cast iron or aluminum parts and accessories.
- Maximum capacity:Up to 300 m3/hr
- Maximum pressure:Up to 50 m TDH
- Designed for solid concentration:Up to 5%
- Victaulic discharge connections:From 2” up to 8”
- Rating:5 HP up to 30 HP
Applications
Civil engineering and construction, tunnel and caisson dewatering, narrow trenches, manholes, pit and sump dewatering.
Others pumps in this serie
3 hp and under pumps
Double-stage pumps
High-head capacity pumps
High capacity pumps
Super high head pumps
Stainless steel pumps
Diffuser pumps Specifications
Pump models | Pump performance | Pump dimensions | |||||
Motor Output | Total head | Capacity | Pump diameter | Height | Weight | Victaulic discharge diameter | |
[hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |

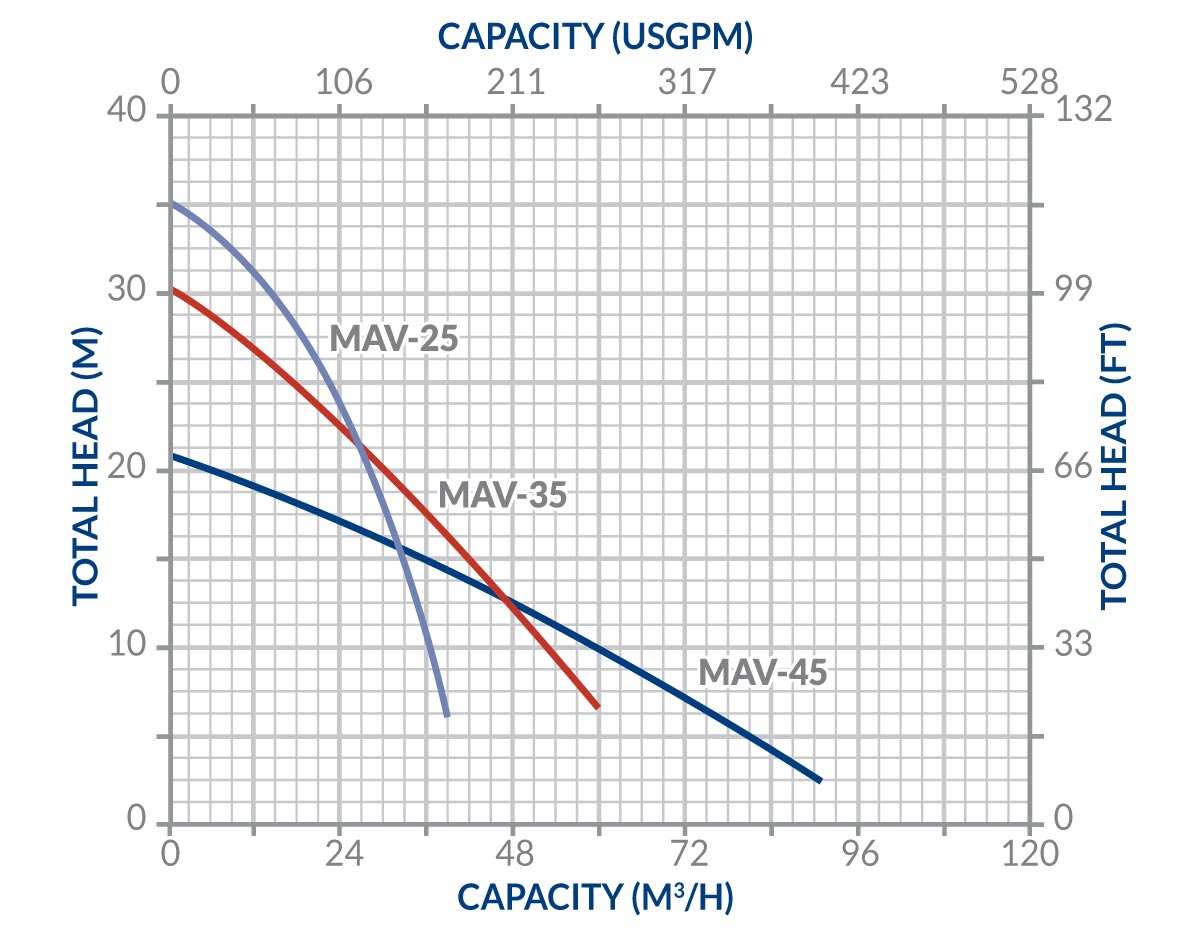

MAV-25 | 5 (3.7) | 98 (30) | 53 (12) | 11 (280) | 27 (680) | 196 (89) | 2 (50) |
MAV-35 | 5 (3.7) | 66 (20) | 132 (30) | 11 (280) | 27 (680) | 180 (82) | 3 (80) |
MAV-45 | 5 (3.7) | 33 (10) | 264 (60) | 11 (280) | 28 (700) | 185 (84) | 4 (100) |

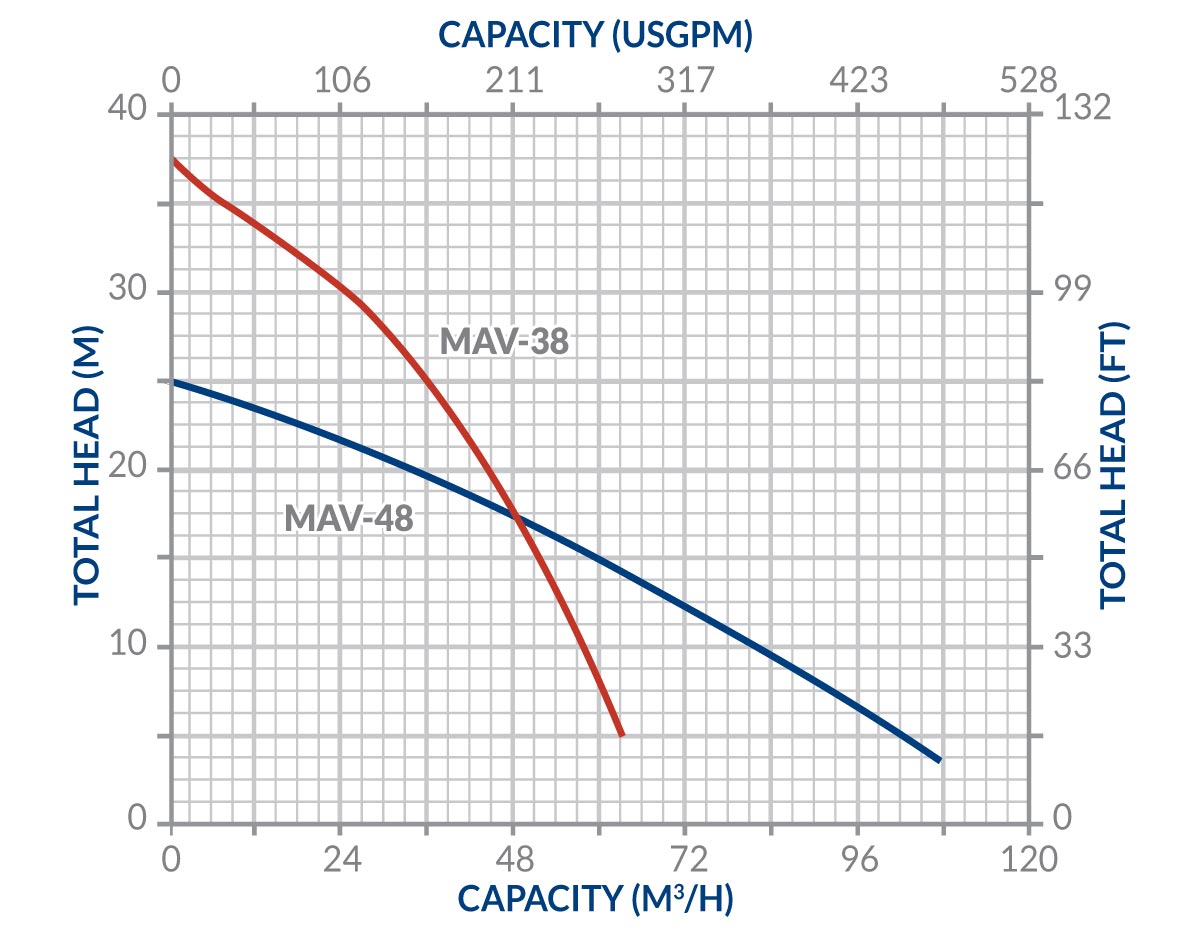

MAV-38 | 8 (5.5) | 92 (28) | 132 (30) | 11 (280) | 27 (680) | 180 (82) | 3 (80) |
MAV-48 | 8 (5.5) | 49 (15) | 264 (60) | 11 (280) | 28 (700) | 180 (82) | 4 (100) |

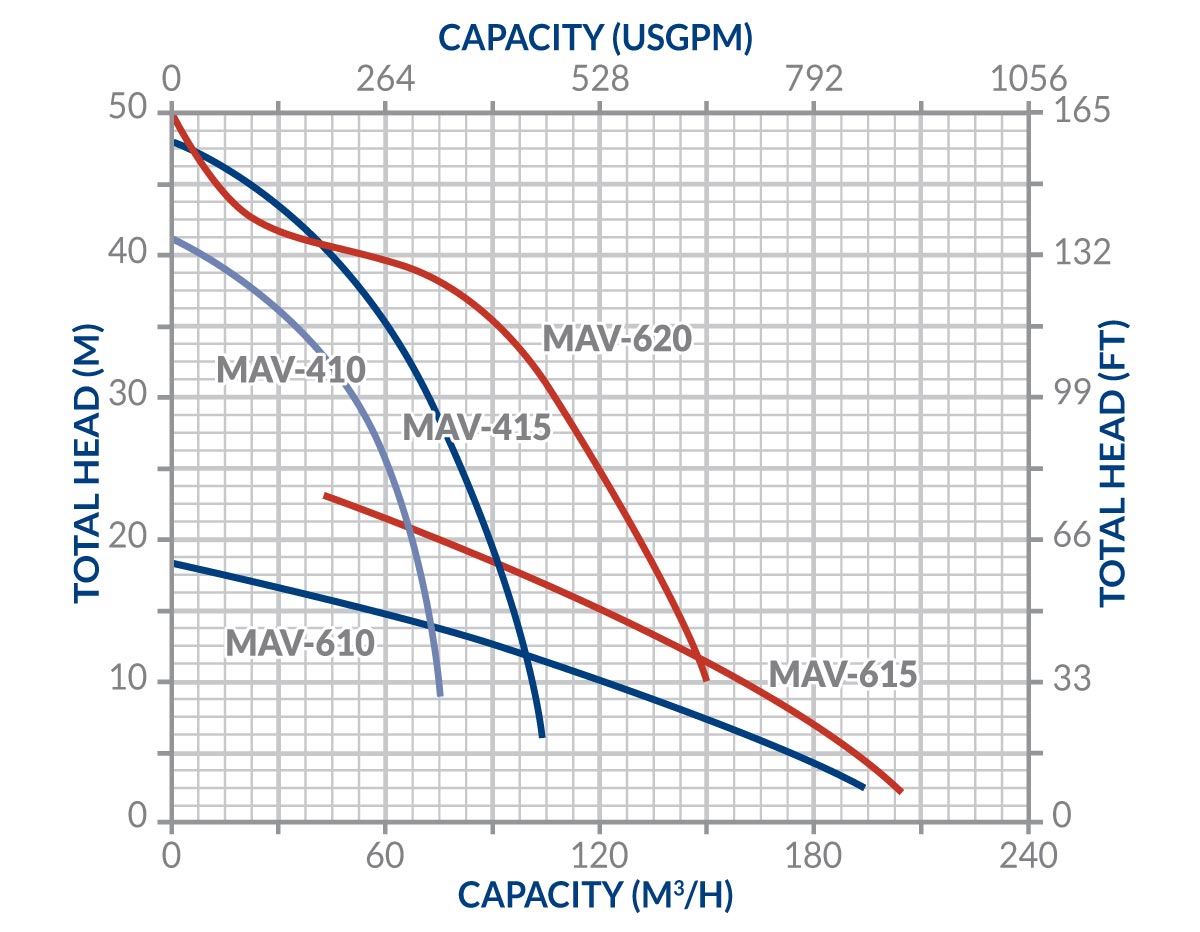

MAV-410 | 10 (7.5) | 89 (27) | 264 (60) | 15 (370) | 33 (835) | 260 (118) | 4 (100) |
MAV-610 | 10 (7.5) | 33 (10) | 528 (120) | 15 (370) | 34 (860) | 249 (113) | 6 (150) |
MAV-415 | 15 (11) | 115 (35) | 264 (60) | 15 (370) | 31 (800) | 271 (123) | 4 (100) |
MAV-615 | 15 (11) | 49 (15) | 528 (120) | 15 (370) | 32 (825) | 260 (118) | 6 (150) |
MAV-620 | 20 (15) | 115 (35) | 396 (90) | 15 (370) | 34 (860) | 306 (139) | 6 (150) |

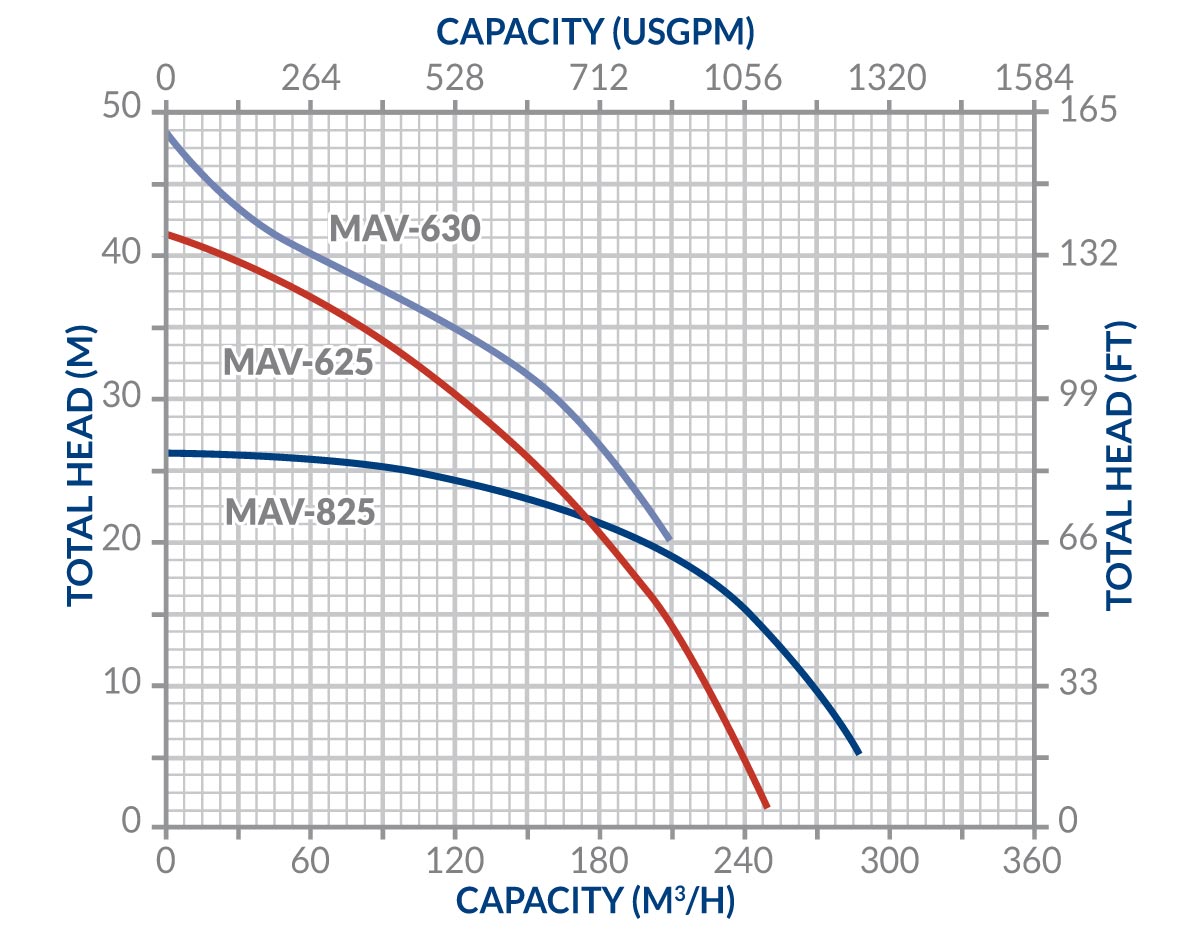

MAV-625 | 25 (19) | 98 (30) | 528 (120) | 18 (455) | 36 (910) | 508 (231) | 6 (150) |
MAV-825 | 25 (19) | 49 (15) | 1056 (240) | 18 (455) | 37 (950) | 493 (224) | 8 (200) |
MAV-630 | 30 (22) | 115 (35) | 528 (120) | 18 (455) | 36 (910) | 508 (231) | 6 (150) |
