Riptide Series

These pumps are fitted with an agitator and designed for extensive and strong stirring applications.

  • Maximum capacity:Up to 360 m3/h
  • Maximum pressure:Up to 40 m TDH
  • Designed for solid concentration:Up to 40%
  • Victaulic discharge connections:From 3” up to 8”
  • Rating:5 HP up to 30 HP

Applications

Underground sump, sedimentation basin dredging, pumping and drainage of liquid with solids.

Heavy duty agitator sand pumps Specifications

Pump models Pump performance Pump dimensions
Motor Output Total head Capacity Max solid through Pump diameter Height Weight Victaulic discharge diameter
[hp - (kW)] [ft - (m)] [Usgpm - (m3/h)] [Inch - (mm)] [Inch - (mm)] [Inch - (mm)] [Lbs - (kg)] [Inch - (mm)]
RIP-35S 5 (3.7) 33 (10) 211 (48) 0.9 (22) 16 (398) 32 (825) 242 (110) 3 (80)
RIP-38S 8 (5.5) 49 (15) 211 (48) 0.9 (22) 16 (398) 32 (825) 262 (119) 3 (80)
RIP-48S 8 (5.5) 33 (10) 343 (78) 1 (25) 16 (398) 32 (825) 262 (119) 4 (100)
RIP-610S 10 (7.5) 33 (10) 528 (120) 1.4 (35) 21 (540) 33 (835) 440 (200) 6 (150)
RIP-615S 15 (11) 46 (14) 528 (120) 1.4 (35) 21 (540) 40 (1022) 528 (240) 6 (150)

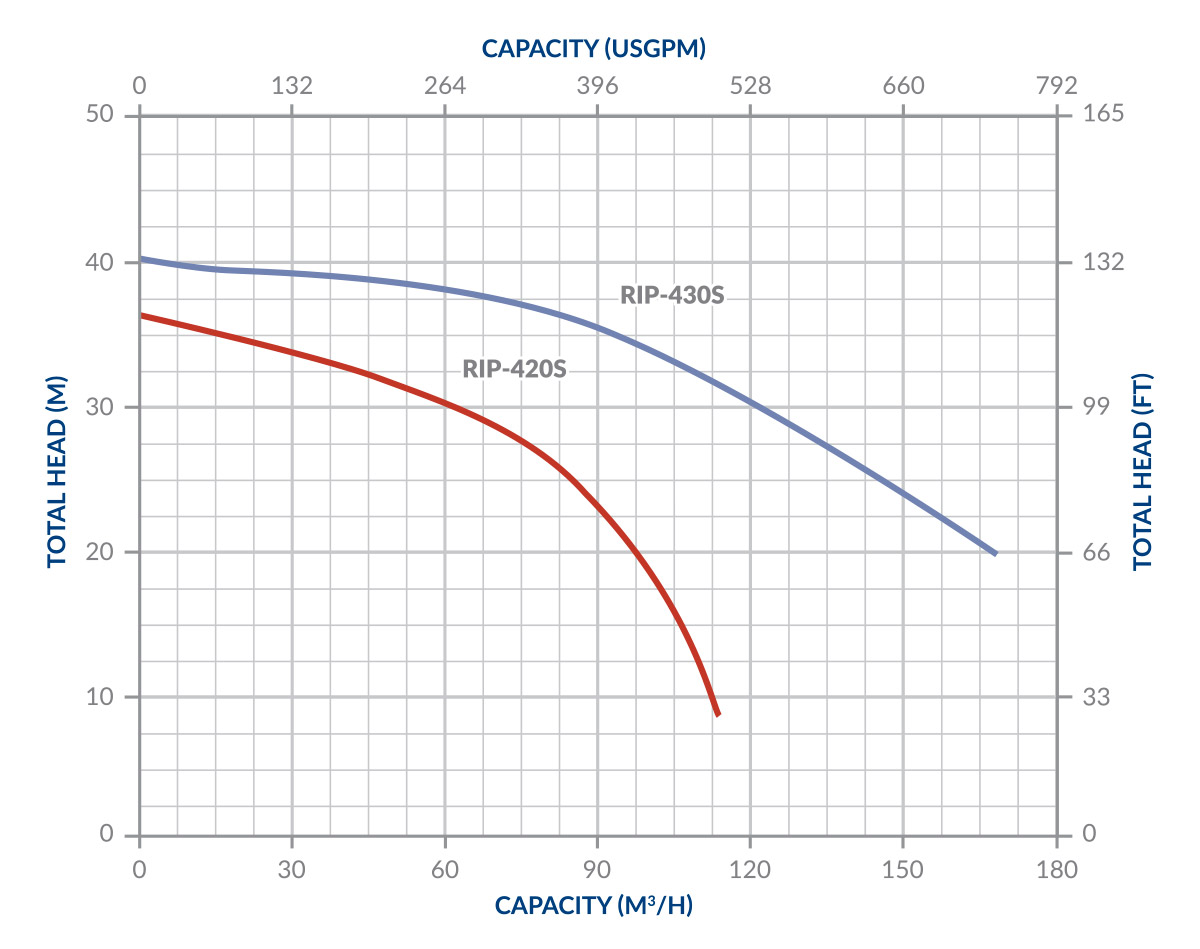

RIP-420S 20 (15) 89 (27) 343 (78) 0.7 (18) 21 (540) 51 (1300) 770 (350) 4 (100)
RIP-430S 30 (22) 115 (35) 396 (90) 0.7 (18) 21 (540) 53 (1350) 924 (420) 4 (100)
RIP-830S 30 (22) 49 (15) 1056 (240) 1.6 (40) 25 (625) 46 (1160) 781 (355) 8 (200)
