Maverick Series
Suitable for dewatering large volumes of water, easy to handle and efficient in performance.
- Maximum capacity:Up to 1200 m3/hr
- Maximum pressure:Up to 40 m TDH
- Designed for solid concentration:Up to 5%
- Victaulic discharge connections:From 6” up to 14”
- Rating:15 HP up to 75 HP
Applications
Drainage out of sumps, open pits, quarries, tunnels, reclaiming operations, power station constructions and waste.
Others pumps in this serie
3 hp and under pumps
Diffuser pumps
Double-stage pumps
High-head capacity pumps
Super high head pumps
Stainless steel pumps

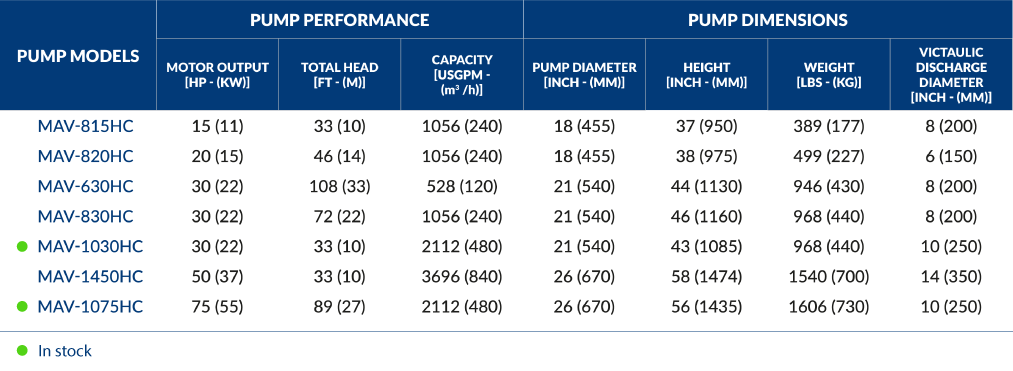

High capacity pumps Specifications
Pump models | Pump performance | Pump dimensions | |||||
Motor Output | Total head | Capacity | Pump diameter | Height | Weight | Victaulic discharge diameter | |
[hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |
MAV-815HC | 15 (11) | 33 (10) | 1056 (240) | 18 (455) | 37 (950) | 389 (177) | 8 (200) |
MAV-820HC | 20 (15) | 46 (14) | 1056 (240) | 18 (455) | 38 (975) | 499 (227) | 8 (200) |
MAV-630HC | 30 (22) | 108 (33) | 528 (120) | 21 (540) | 44 (1130) | 946 (430) | 6 (150) |
MAV-830HC | 30 (22) | 72 (22) | 1056 (240) | 21 (540) | 46 (1160) | 968 (440) | 8 (200) |
MAV-1030HC | 30 (22) | 33 (10) | 2112 (480) | 21 (540) | 43 (1085) | 968 (440) | 10 (250) |
MAV-1450HC | 50 (37) | 33 (10) | 3696 (840) | 26 (670) | 58 (1474) | 1540 (700) | 14 (350) |
MAV-1075HC | 75 (55) | 89 (27) | 2112 (480) | 26 (670) | 56 (1435) | 1606 (730) | 10 (250) |
