Maverick Series
Every part likely to come into contact with liquid is made of non-corrosive material. Packing is made of fluoric rubber that is highly resistant to chemicals and heat. These submersible pumps have been developed to meet industry requirements for handling chemicals, metal or mine water.
- Maximum capacity:Up to 100 m3/hr
- Maximum pressure:Up to 45 m TDH
- Designed for solid concentration:Up to 5%
- Victaulic discharge connections:From 2” up to 4”
- Rating:0.5 HP up to 15 HP
Applications
Easily withstand corrosive liquid in mine water and paper mills.
Others pumps in this serie
3 hp and under pumps
Diffuser pumps
Double-stage pumps
High-head capacity pumps
High capacity pumps
Super high head pumps

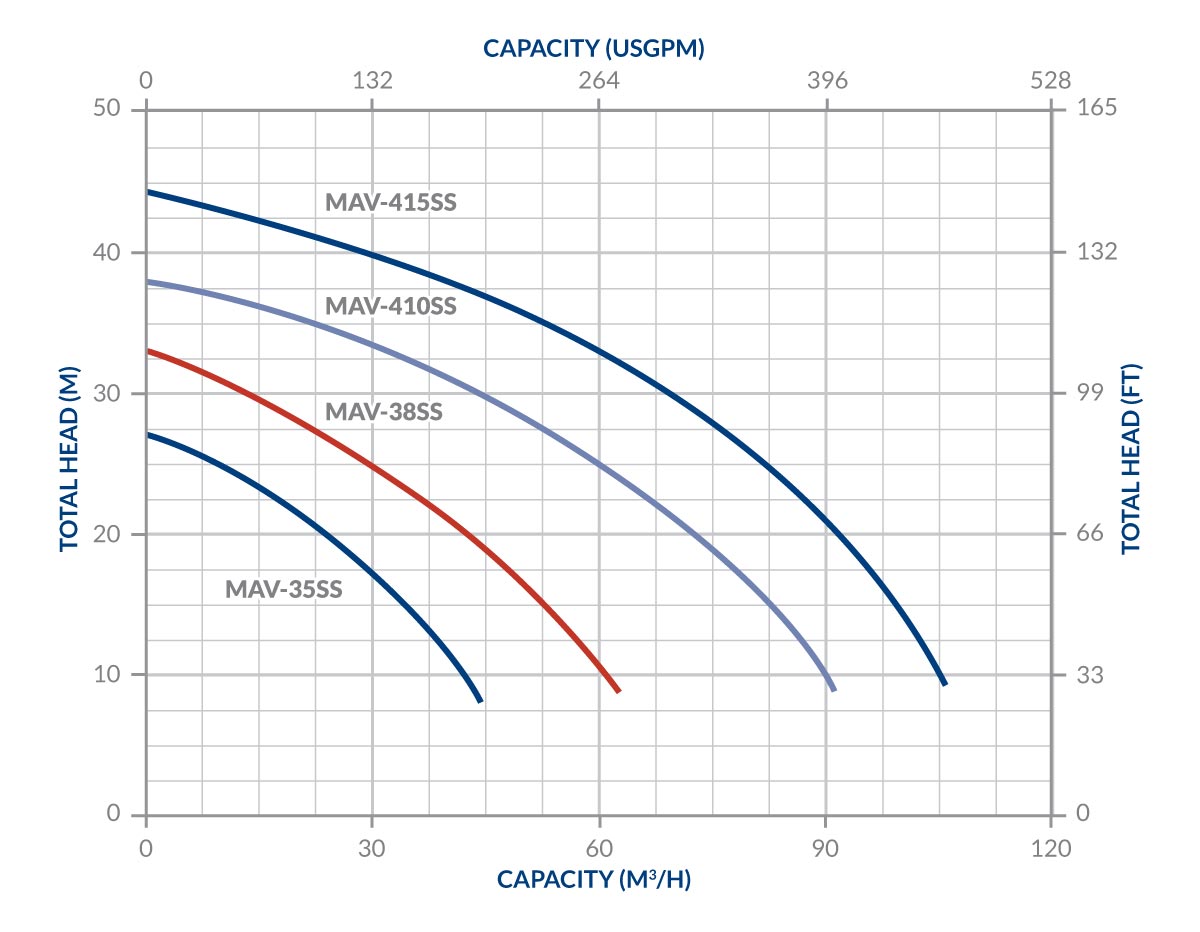

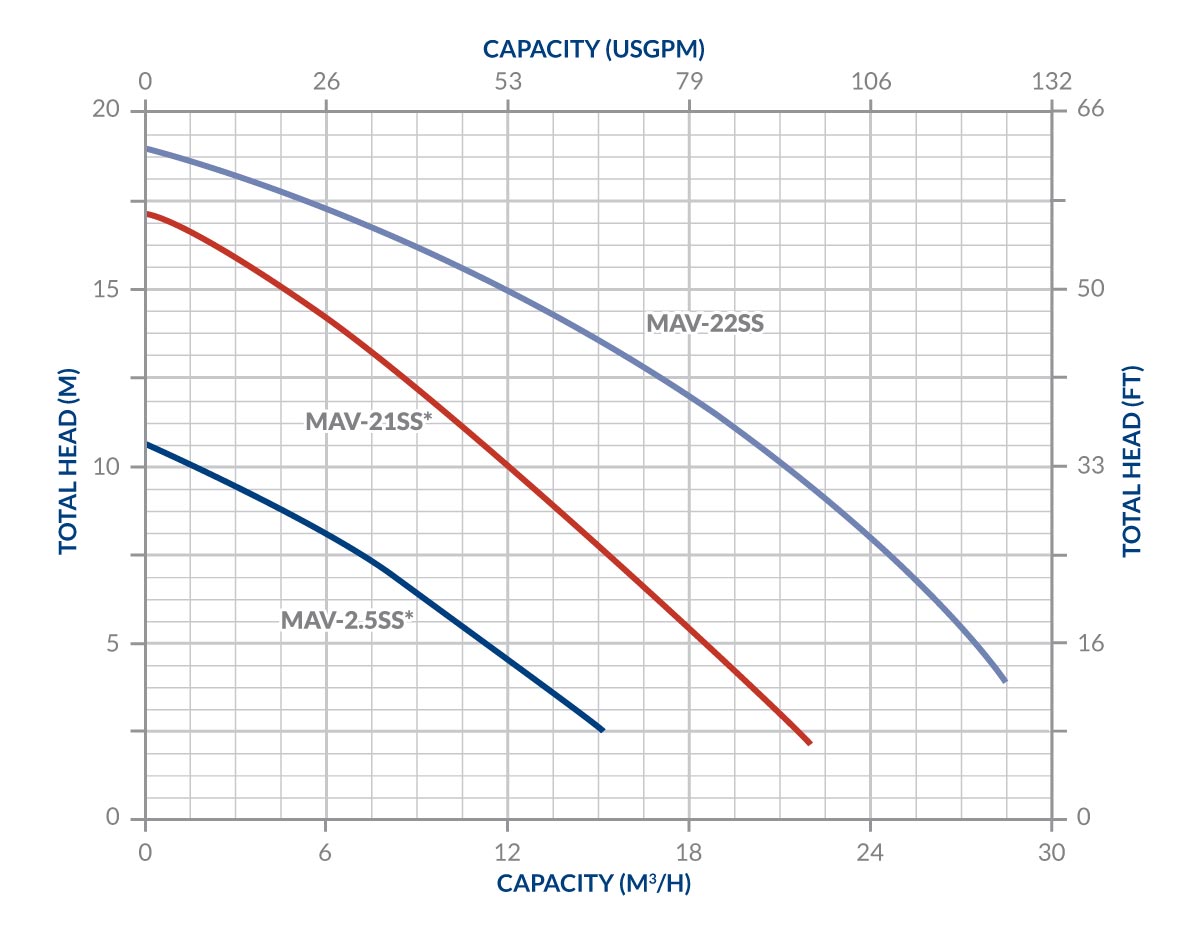

Stainless steel pumps Specifications
Pump models | Pump performance | Pump dimensions | |||||
Motor Output | Total head | Capacity | Pump diameter | Height | Weight | Victaulic discharge diameter | |
[hp - (kW)] | [ft - (m)] | [Usgpm - (m3/h)] | [Inch - (mm)] | [Inch - (mm)] | [Lbs - (kg)] | [Inch - (mm)] | |
MAV-2.5SS* | 0.5 (0.4) | 26 (8) | 26 (6) | 10 (250) | 16 (398) | 51 (23) | 2 (50) |
MAV-21SS* | 1 (0.8) | 33 (10) | 53 (12) | 10 (250) | 16 (398) | 53 (24) | 2 (50) |
MAV-22SS | 2 (1.5) | 49 (15) | 53 (12) | 8 (200) | 19 (470) | 81 (37) | 2 (50) |
MAV-35SS | 5 (3.7) | 56 (17) | 132 (30) | 12 (304) | 25 (625) | 202 (92) | 3 (80) |
MAV-38SS | 8 (5.5) | 82 (25) | 132 (30) | 12 (304) | 25 (625) | 216 (98) | 3 (80) |
MAV-410SS | 10 (7.5) | 82 (25) | 264 (60) | 14 (350) | 28 (700) | 279 (127) | 4 (100) |
MAV-415SS | 15 (11) | 108 (33) | 264 (60) | 14 (350) | 29 (735) | 301 (137) | 4 (100) |
